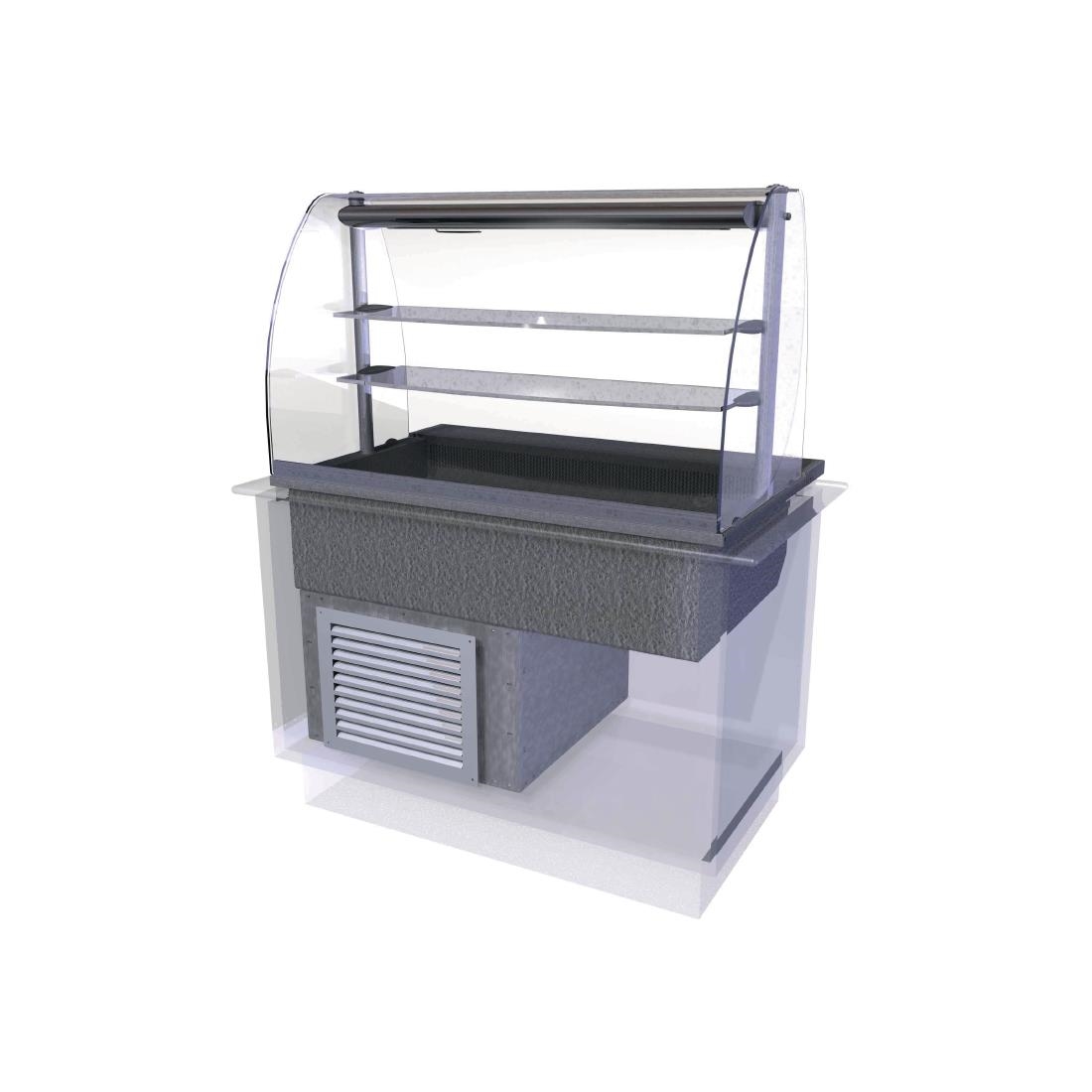

Designline Cold Multi Level Deli Assisted Service 1175mm

Description

A multipurpose merchandising tool, this Designline Cold Multi Level Deli utilises an inviting elliptical display to attractively yet efficiently promote both chilled and ambient supplies. Functioning 24 hours a day, the overhead gantry provides diffused lighting over the chilled well whilst also housing the energy efficient hydrocarbon condenser, which allows the multi level deli to operate at lower costs and with less environmental waste than most other chilled display units. Besides the 3/1 GN chilled well capacity, two ambient display shelves are placed midway below the gantry to further attract customers through items such as cakes, sandwiches and cheese. GN pans sold separately.Please note: base/counter not included. Special-to-order – this product is non-returnable.

Product features

Capacity 3 x 1/1 GN

Dimensions 695(H) x 1175(W) x 784(D)mm

Dimensions – internal 115(H) x 1050(W) x 550(D)mm

Material Curved Toughened Glass, Stainless Steel and Aluminium

Finish – external Stainless Steel

Power Type 1.22kW, 230V, 13A

Refrigerant R290 / 365g

Supplier Model Number CMDL3HT

Temperature Range -1°C to 5°C

Voltage 230V

Weight 152kg

Colour Chrome

Noise Level 63.8

Warranty RBD 1 Year

Five Year Electricity Cost £668.20 – based on £0.13 per unit

Curved display in bright polished steel and aluminium profile

The 3/1 Gn well display area is chilled by energy efficient hydrocarbon refrigerant (r290)

Gantry fitted with curved full height toughened glass sneeze screen and side glass for food protection. Glass tilts forward in a locking hinge for ease of cleaning

Assisted service application

Features eye level gantry mounted digital temperature display & control panel ( to operator side of display)

24 hour operation as standard

Product illumination is provided from diffused lighting within the gantry

Two additional ambient glass mid shelves provide additional merchandising space above the cold display area

Curved glass profile is designed to complement other units within the Designline range

Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket

(Cold well area) Drinks display examples: bottled drinks, water, lager, fruit juice. Food display examples: Pies, pasties, sausage rolls, sandwich fillings, rolls, pasta

(Ambient shelving area) : Food display examples : Danish pastries, muffins, fruit cake, biscuits, fruit, rice cakes, tacos, crisps, nuts. * Sandwiches, baguettes, rolls
