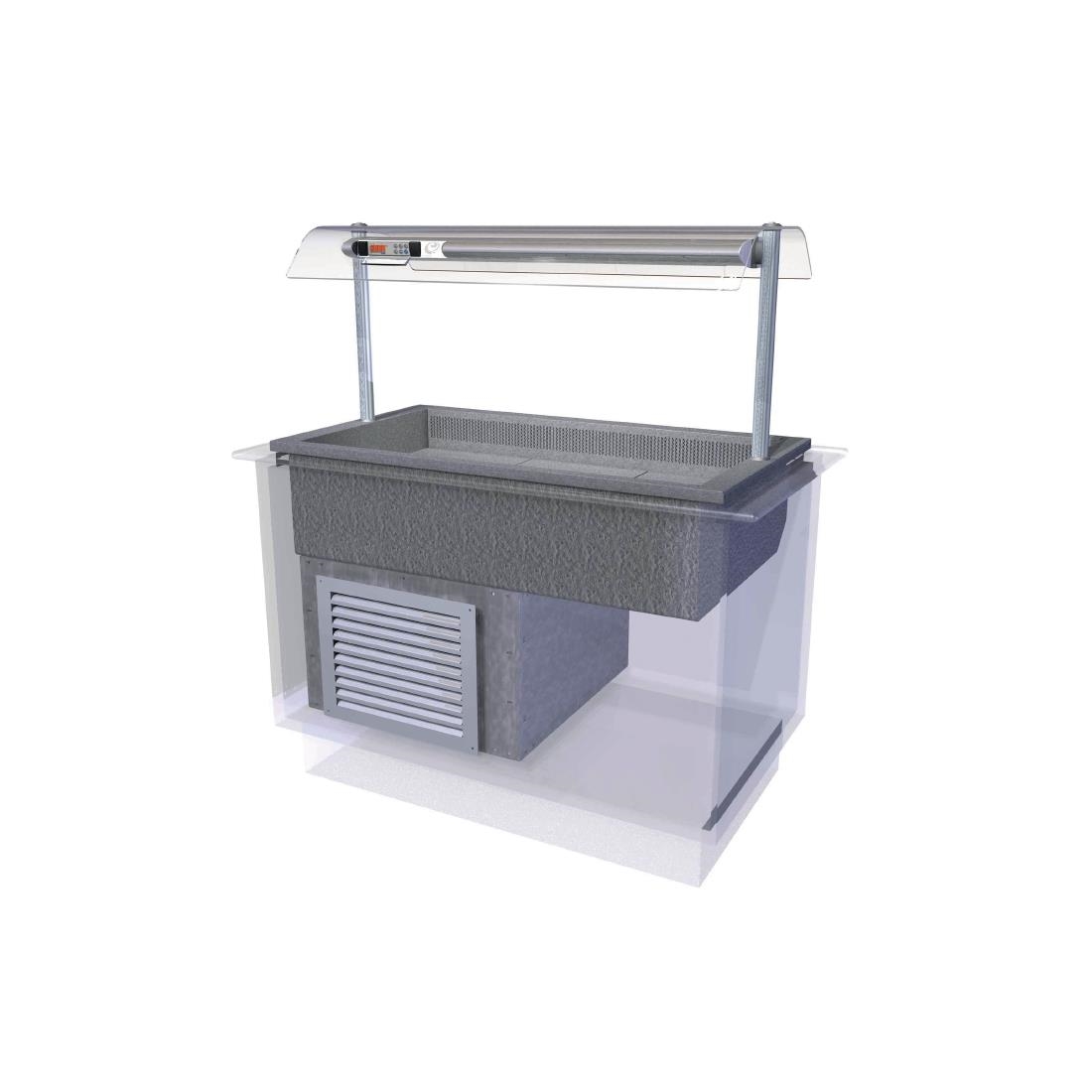

Designline Drop In Cold Island Well Self Service 1175mm

Description

Comfortably chill and present your finest chilled food through a Designline Drop In Cold Island Well, an energy efficient cooling display unit ideal for self service establishments. Utilising hydrocarbon refrigerant that cuts both running costs and environmental waste, the cold island well operates 24 hours a day as standard and controls its internal temperature through an eye level digital control panel. Holding up to 3/1 GN the cold well can be customised in accordance with your own menu selection and personal preference, with robust sneeze screens fitted to protect your produce from cross contamination. Modular deck plates can be removed from the cold well for easier cleaning, and an integrated condensate water evaporator removes the hassle of site drainage. GN pans sold separately.Please note: base/counter not included. Special-to-order – this product is non-returnable.

Product features

Capacity 3x 1/1 GN

Dimensions 535(H) x 1175(W) x 660(D)mm

Dimensions – internal 115(H) x 1050(W) x 550(D)mm

Material Curved Toughened Glass, Stainless Steel and Aluminium

Finish – external Stainless Steel

Power Type 1.22kW, 230V, 13A

Refrigerant R290 / 365g

Supplier Model Number CIW3HT

Temperature Range -1°C to 5°C

Voltage 230V

Weight 111kg

Colour Chrome

Noise Level 63.8

Warranty RBD 1 Year

Five Year Electricity Cost £668.20 – based on £0.13 per unit

Curved display in bright polished steel and aluminium profile

The 3/1 Gn island well display area is chilled by energy efficient hydrocarbon refrigerant (r290)

Gantry fitted with curved toughened glass sneeze screen to each side of display, for food protection

Self help application

Features eye level gantry mounted digital temperature display & control panel ( to operator side of display)

24 hour operation as standard

Product illumination is provided from diffused lighting within the gantry

Curved glass profile is designed to complement other units within the Designline range

Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket

(Cold well area) Drinks display examples: carton drinks, water, lemonade, wine, fruit juice. Food display examples: Pies, pasties, sausage rolls, pasta & fruit
