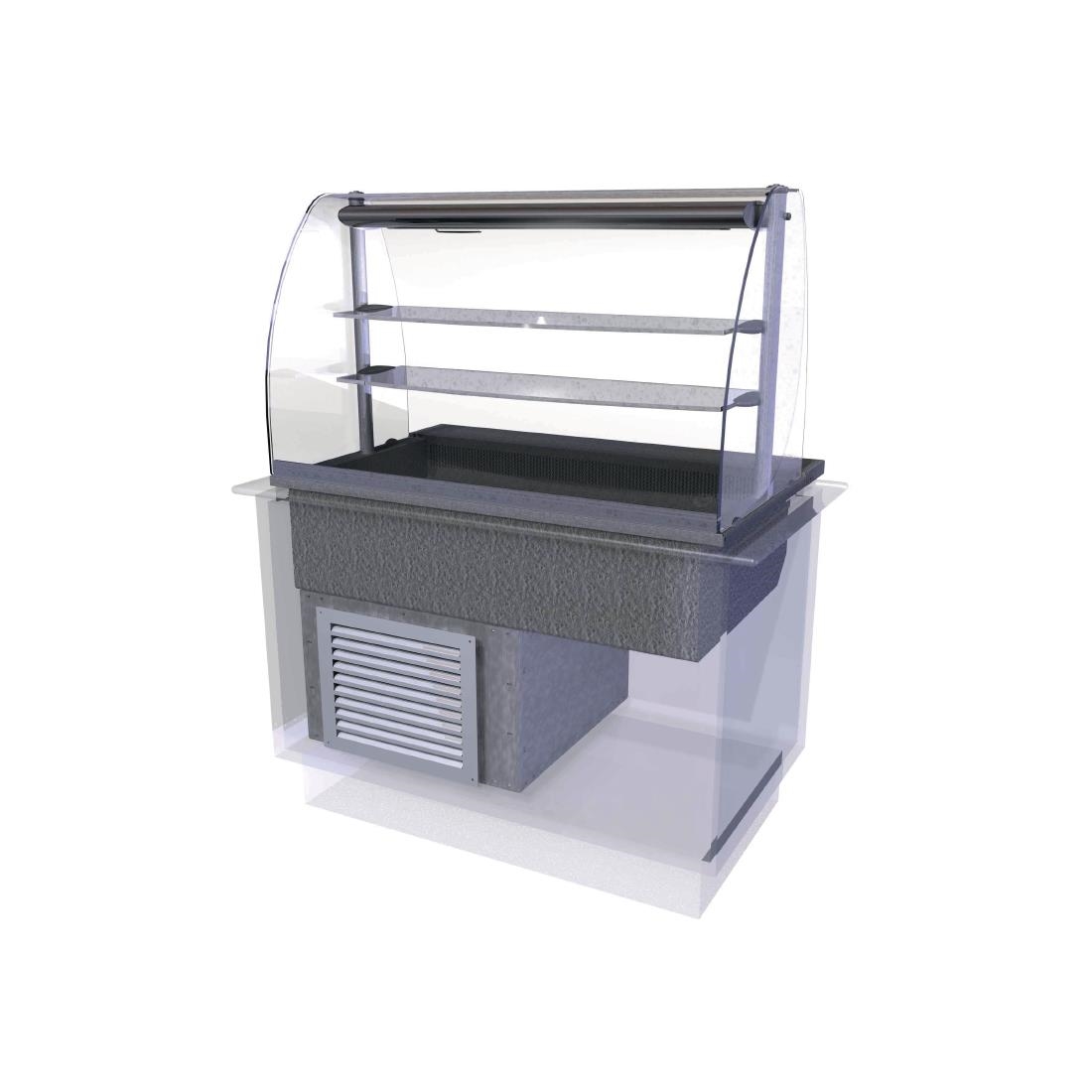

Designline Drop In Cold Multi Level Deli Assisted Service 1525mm

Description

Holding an impressive 4/1 GN worth of chilled food alone, the Designline Drop In Cold Multi Level Deli combines its cool well area with two ambient shelves to expand your merchandising prospects. Using energy efficient hydrocarbon refrigerant, the deli functions cost-effectively and with less environmental waste than standard refrigeration models. A gantry mounted digital temperature display and control panel offers complete control over any internal settings and can be locked to prevent any tampering from customers. The heightened glass sneeze screen and side panels lessen the chance of cross contamination between foods, and the top glass can be tilted forward for ease of cleaning. Additionally an integrated evaporator unit removes any need for site drainage. GN pans sold separately.Please note: base/counter not included. Special-to-order – this product is non-returnable.

Product features

Capacity 4x 1/1 GN

Dimensions 695(H) x 1525(W) x 784(D)mm

Dimensions – internal 115(H) x 1400(W) x 550(D)mm

Material Curved Toughened Glass, Stainless Steel and Aluminium

Finish – external Stainless Steel

Power Type 1.46kW, 230V, 13A

Refrigerant R290 / 420g

Supplier Model Number CMDL4HT

Temperature Range -1°C to 5°C

Voltage 230V

Weight 170kg

Colour Chrome

Noise Level 63.8

Warranty RBD 1 Year

Five Year Electricity Cost £880.75 – based on £0.13 per unit

Curved display in bright polished steel and aluminium profile

The 4/1 Gn well display area is chilled by energy efficient hydrocarbon refrigerant (r290)

Gantry fitted with curved full height toughened glass sneeze screen and side glass for food protection. Glass tilts forward in a locking hinge for ease of cleaning

Assisted service application

Features eye level gantry mounted digital temperature display & control panel ( to operator side of display)

24 hour operation as standard

Product illumination is provided from diffused lighting within the gantry

Two additional ambient glass mid shelves provide additional merchandising space above the cold display area

Curved glass profile is designed to complement other units within the Designline range

Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket

(Cold well area) Drinks display examples: canned drinks, water, lemonade, wine, beer, lager, fruit juice. Food display examples: Pies, pasties, sausage rolls, fruit

(Ambient shelving area) : Food display examples : Danish pastries, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts. * Sandwiches, baguettes, rolls
