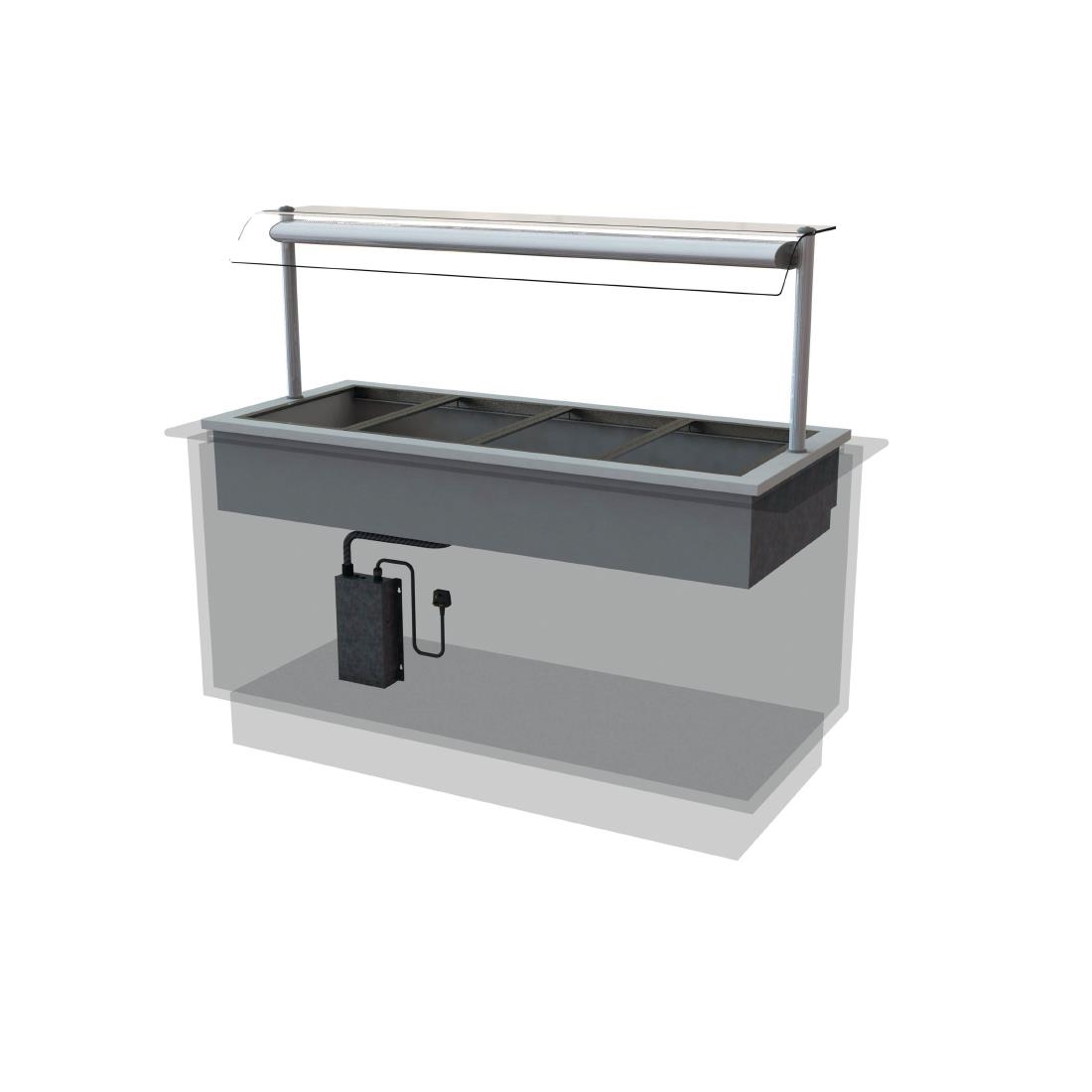

Designline Drop In Dry Heat Bain Marie HBM4

Description

Tempt your guests with a steaming selection of warmed foods in the Drop In Dry Heat Bain Marie from Designline. Offering four gastronorm pan support collars, you can add and arrange your dishes to match whatever selection you have to offer. Each section is heated by its own individual element beneath and infra red lamps in the overhead gantry, resulting in your dishes being warmed equally and consistently across the entire unit. Both the base and surface heat can be altered separately through a control panel mounted in the gantry, which can then be locked to ensure there is no interference from customers during peak times. A toughened glass sneeze screen ensures minimal risk of contamination from browsing customers.Please note: base/counter not included. Special-to-order – this product is non-returnable.

Product features

Dimensions 535(H) x 1525(W) x 660(D)mm

Power Type 3kW, 230V, 13A

Supplier Model Number HBM4

Temperature Range 85°C to 110°C

Voltage 230V

Weight 55kg

Colour Chrome

Warranty RBD 1 Year

Curved display in bright polished steel and aluminium profile

Product illumination/ surface heat provided by infra red quartz heat lamps to each 1/1Gn section, housed within an elliptical profile gantry

Base heat is provided to each 1/1 GN section by individual heater elements

Supplied with individual 1/1 GN gastronorm container support collars, which accept various sized GN containers up to 150mm deep

Gantry fitted with curved toughened glass sneeze screen for food protection

24 hour operation as standard

Self help application

Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch (to operator side of display)

Supplied with lifting kit for installation and concealed control box & plug top on a 2M lead

Curved glass profile is designed to complement other units within the Designline range
