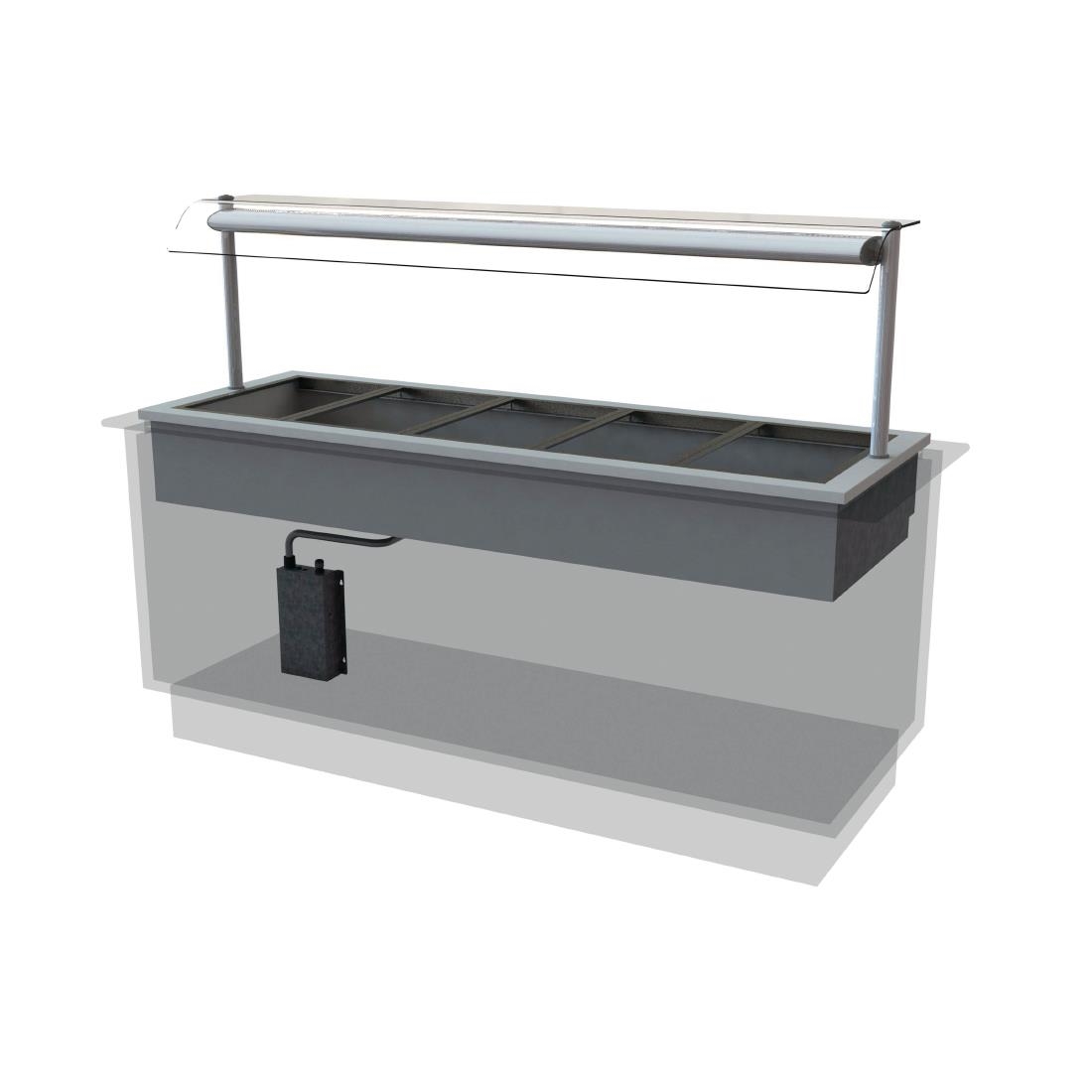

Designline Drop In Dry Heat Bain Marie HBM5

Description

High on power, low on maintenance – this dry heat bain marie display unit from Designline is perfect for displaying all kinds of heated food in fast-paced self service areas. Heating any gastronorm pans held within it through base heat elements as well as infrared heat lamps above, the bain marie is expertly designed to preserve the texture and consistency of your food while keeping it at serving temperature.Both heating types can be monitored, controlled and locked through an easily accessible control panel and switch mounted in the gantry. With the unit’s 1/1GN size compatibility and its simple 24-hour operation, it really is an excellent option to display an ever-changing selection of meals that would greatly benefit a buffet or canteen-style menu.Please note: This is a drop-in unit, the base and counter is not included. Special-to-order – this product is non-returnable.

Product features

Dimensions 535(H) x 1525(W) x 660(D)mm

Power Type 4kW, 230V, 13A

Supplier Model Number HBM5

Temperature Range 85°C to 110°C

Voltage 230V

Weight 66kg

Colour Chrome

Warranty RBD 1 Year

Presentation area heated evenly from underneath by individual heater mat elements

Infrared quartz heat lamps provide surface heat and illumination to each 1/1GN area

Gantry fitted with curved toughened sneeze screen glass for food protection

Individual 1/1 gastronorm support collars accept various-sized GN containers up to 150mm deep

Gantry-mounted digital temperature display is easy to monitor

Simple base heat control panel and top heat control by dimmer switch

Smart curved display in bright polished steel with aluminium profile

Curved glass profile complements other Designline units

24-hour operation as standard

Supplied with lifting kit for installation

Includes concealed control box with a 2m flexible electrical conduit for hard wiring to a 20A 230V 4.0kW supply
