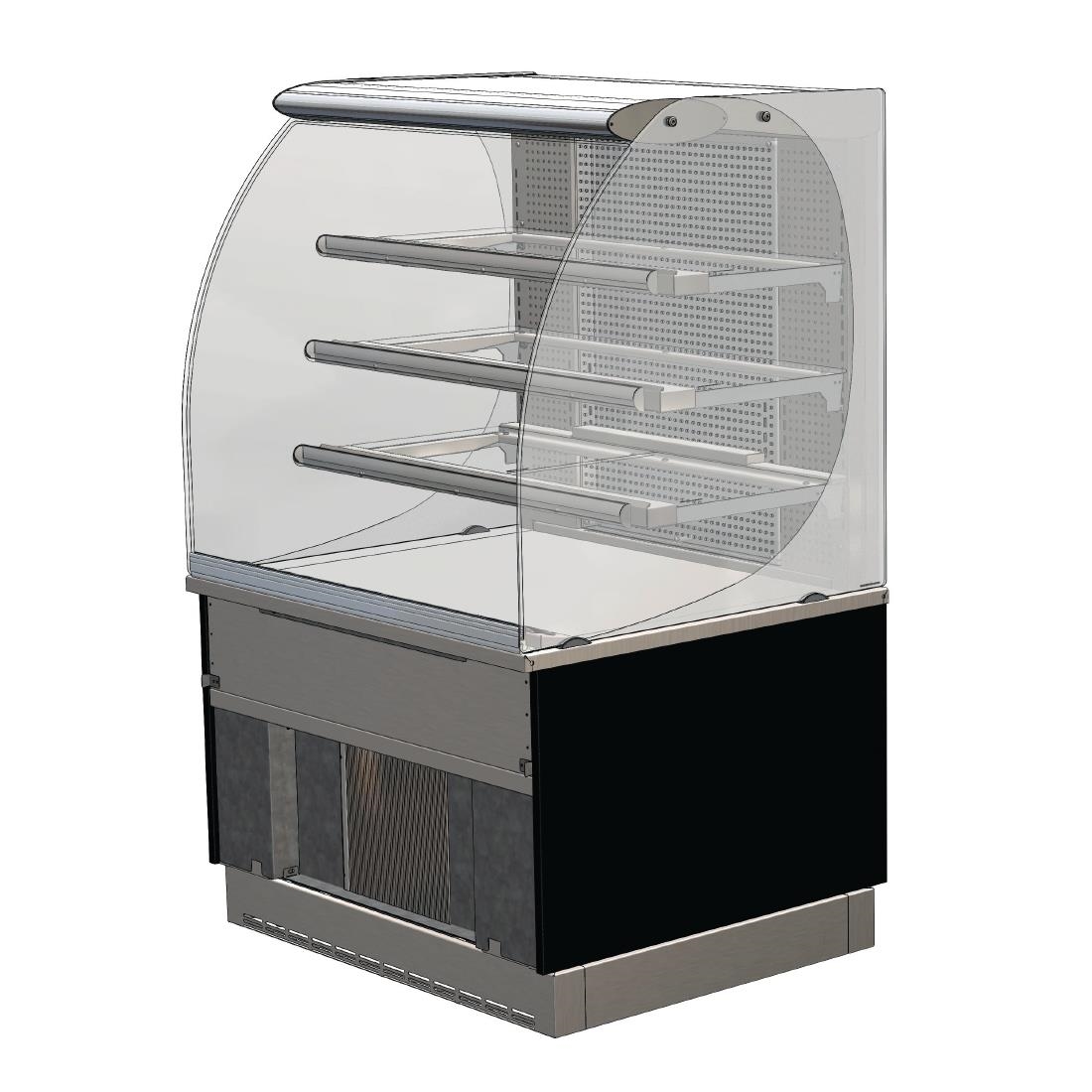

Designline Drop In Slimline Multideck Assisted Service 900mm

Description

Offer your customers a visual feast of your finest chilled produce with this assisted service Designline Drop In Cold Patisserie. Illuminated through an overhead gantry, the three adjustable shelves and cold deck area offer plenty of space to arrange your foods and drinks displays to push quick buys in high output establishments. Employing hydrocarbon refrigerant that cuts environmental waste and running costs, the deck plates inside can be removed and the front glass tilted for easy cleaning, and an internal evaporator cuts the need for site drainage. Operating around the clock, this drop in display is ideal for businesses working at all times of the day.Please note: special-to-order. This product is non-returnable.

Product features

Capacity 228.6Ltr

Dimensions 1467(H) x 900(W) x 750(D)mm

Dimensions – internal 707(H) x 870(W) x 610(D)mm

Material Curved Toughened Glass, Stainless Steel and Aluminium

Finish – external Stainless Steel

Power Type 1.5kW, 230V, 13A

Refrigerant R290 / 345g

Supplier Model Number PC9ASHT

Temperature Range -1°C to 5°C

Voltage 230V

Weight 190kg

Colour Chrome & Black

Noise Level 63.8

Warranty RBD 1 Year

Five Year Electricity Cost £1006.20 – based on £0.13 per unit

Elliptical curved gantry in polished steel & aluminium, in a toughened glass front screen and side panels. Black powder coated steel base unit. (Fascia panel optional)

Features 3 chilled toughened glass display shelves with adjustable height and angle

The 900mm long deck display area & shelves are chilled by energy efficient hydrocarbon refrigerant (r290)

Freestanding for assisted service application. (1 hinged rear door to display)

Each chilled shelf features diffused lighting, product stop and 40mm tall ‘point of sale’ display/ticket strip

Gantry is fitted with toughened glass full height front screen and side glass protection to the customer side of the display

Additional product illumination from diffused lighting within the curved profile gantry

Curved glass profile is designed to complement other units within the Designline range

Features eye level gantry mounted digital temperature display and control panel (to customer side of display)

Complete with locking castors that have a combined adjustable central foot for levelling, foot adjustment spanner, steel kick plinths and a 2m lead and 3 pin UK plug top

Special-to-order. Non-returnable

Drinks display examples: bottled, canned or carton drinks, water, lemonade, fruit juice. Food display examples : Pies, pasties, sausage rolls, sandwich fillings, cheese
