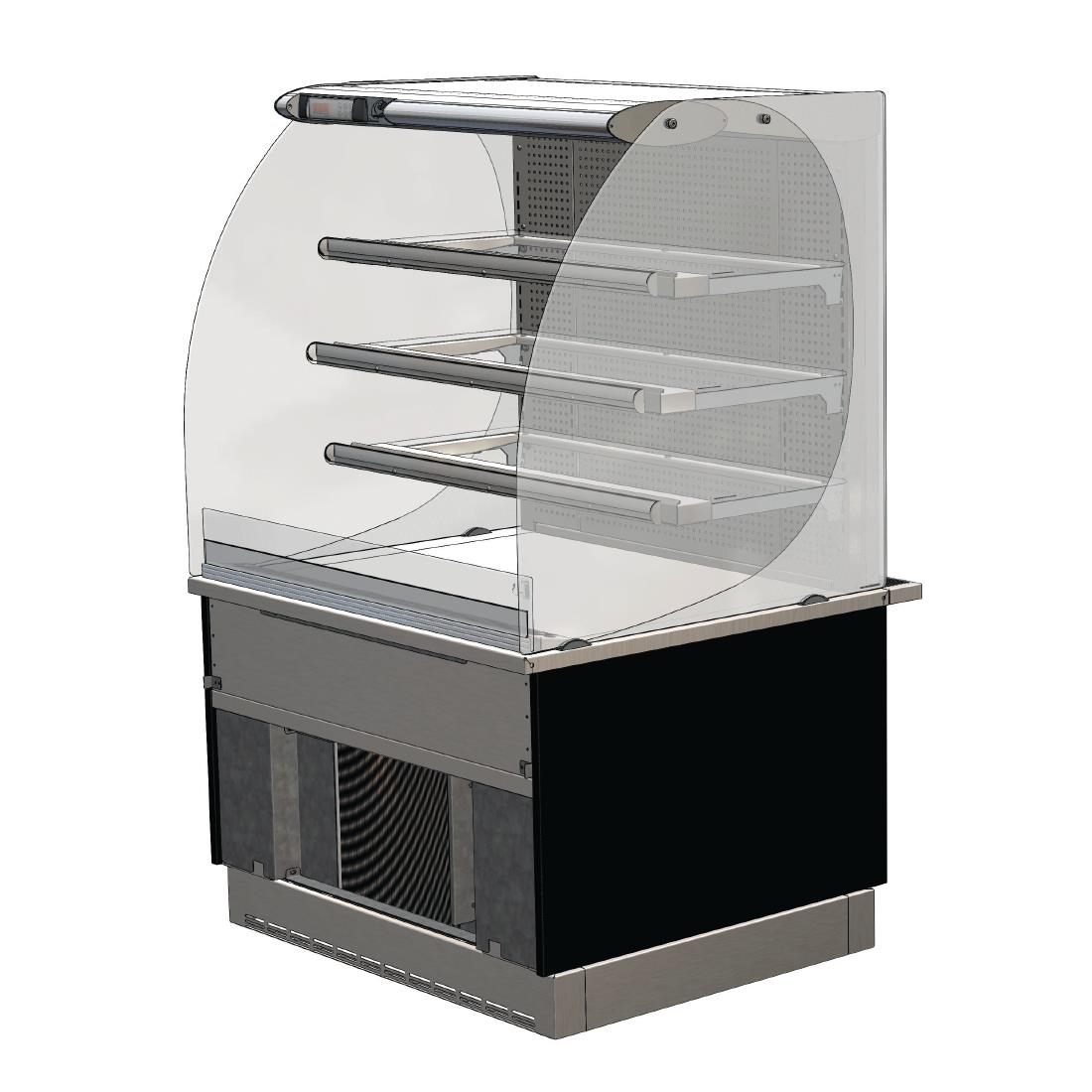

Designline Drop In Slimline Multideck Self Service 600mm

Description

With curved glass side panels alongside tiered adjustable shelving, the Designline Drop In Cold Patisserie provides a compact and efficient method of merchandising your foodstuffs without taking up vast amounts of space. Point of sale strips and diffused lighting across the shelving pushes impulse buys from customers, and you may alter the shelves to the height and angle you desire for best fit. Operating on environmentally friend hydrocarbon refrigerant, the unit would be well fitted against a wall or alongside a queuing system to best merchandise your goods. Lockable castors and a levelling foot allow you to move this item easily for cleaning purposes. Other features include digital temperature control, removable deck plates and a water evaporator to remove the need for site drainage.Please note: special-to-order. This product is non-returnable.

Product features

Capacity 247.3Ltr

Dimensions 1467(H) x 600(W) x 750(D)mm

Dimensions – internal 707(H) x 570(W) x 610(D)mm

Material Curved Toughened Glass, Stainless Steel and Aluminium

Finish – external Stainless Steel

Power Type 1.47kW, 230V, 13A

Refrigerant R290 / 365g

Supplier Model Number PC6FBHT

Temperature Range -1°C to 5°C

Voltage 230V

Weight 145kg

Colour Chrome & Black

Noise Level 63.8

Warranty RBD 1 Year

Five Year Electricity Cost £1032.85 – based on £0.13 per unit

Elliptical gantry in bright polished steel, & aluminium with toughened glass side panels. Black powder coated steel base unit. ( Fascia panel optional )

Features 3 chilled toughened glass display shelves with adjustable height and angle

The 600mm long deck display area & shelves are chilled by energy efficient hydrocarbon refrigerant (r290)

Freestanding for self service application. (Steel perforated back panels to display)

Each chilled shelf features diffused lighting, product stop and 40mm tall ‘point of sale’ display/ticket strip

Gantry is fitted with toughened side glass protection to the customer side of the display

Additional product illumination from diffused lighting within the curved profile gantry

Curved glass profile is designed to complement other units within the Designline range

Features eye level gantry mounted digital temperature display and control panel (to customer side of display)

Complete with locking castors that have a combined adjustable central foot for levelling, foot adjustment spanner, steel kick plinths and a 2m lead and 3 pin UK plug top

Special-to-order. Non-returnable

Drinks display examples: bottled, canned drinks, lemonade, wine, beer, fruit juice. Food display examples : Pies, pasties, sausage rolls, cheese, sandwiches, pastries
