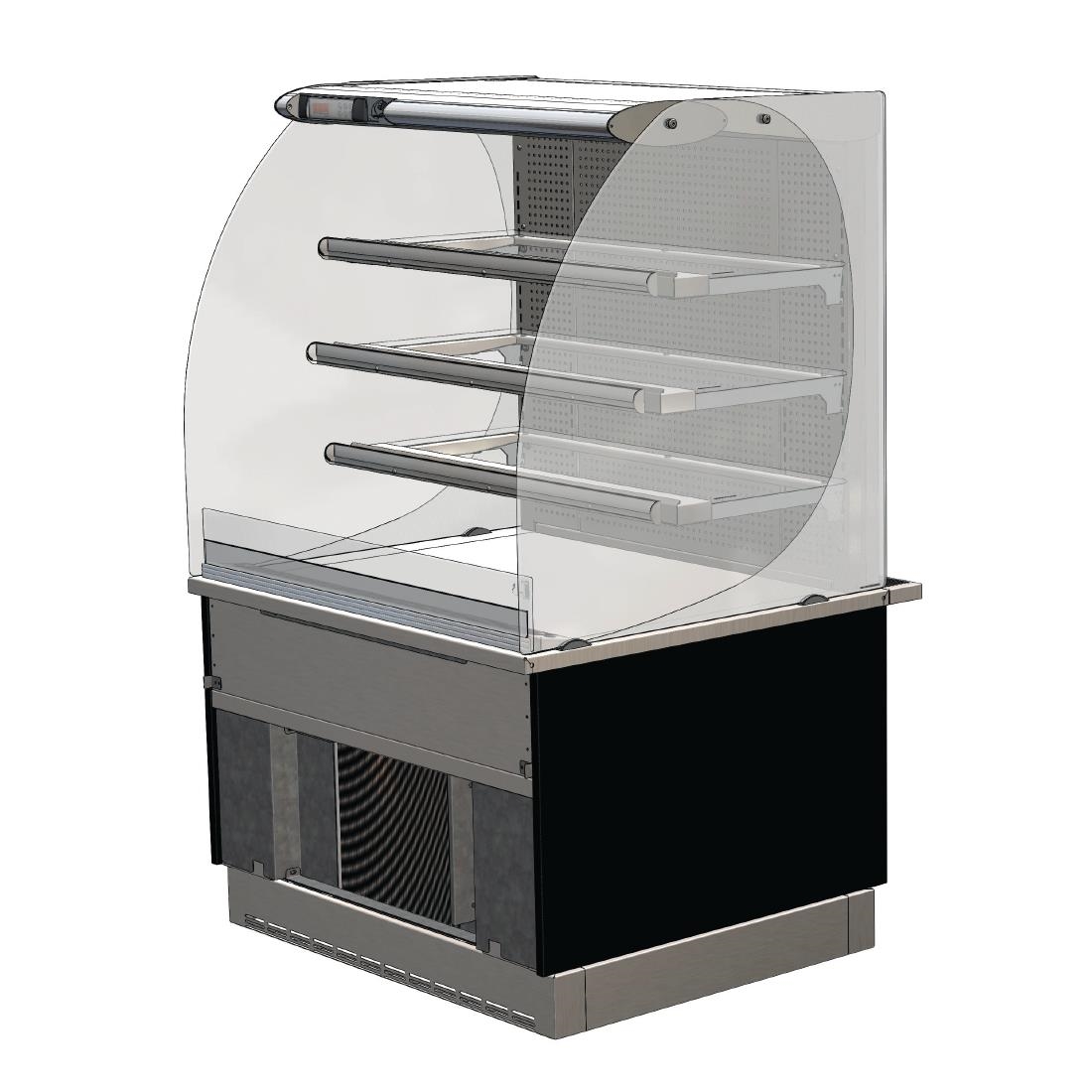

Designline Drop In Slimline Multideck Self Service 900mm

Description

Give your hungry customers a quick ‘grab and go’ solution during busy days using a Designline Drop In Cold Patisserie. Suited for a high frequency of customers, the shelves can be adjusted accordingly with your line of stock to provide the best selection for visually promoting anything from bottled drinks, to yoghurts and potato fillings. Functioning around the clock, this model is powered by hydrocarbon refrigerant that lessens its environmental impact as well as reducing running costs. Temperature can be modified and locked through a digital control panel situated on the gantry, and other features include removable deck plates, a water evaporator and lockable castors for easy manoeuvrability.

Product features

Capacity 228.6Ltr

Dimensions 1467(H) x 900(W) x 750(D)mm

Dimensions – internal 707(H) x 870(W) x 610(D)mm

Material Curved Toughened Glass, Stainless Steel and Aluminium

Finish – external Stainless Steel

Power Type 1.7kW, 230V, 13A

Refrigerant R290 / 465g

Supplier Model Number PC9FBHT

Temperature Range -1°C to 5°C

Voltage 230V

Weight 190kg

Colour Chrome & Black

Noise Level 71

Warranty RBD 1 Year

Five Year Electricity Cost £1006.20 – based on £0.13 per unit

Elliptical gantry in bright polished steel, & aluminium with toughened glass side panels. Black powder coated steel base unit. ( Fascia panel optional )

Features 3 chilled toughened glass display shelves with adjustable height and angle

The 900mm long deck display area & shelves are chilled by energy efficient hydrocarbon refrigerant (r290)

Freestanding for self service application. (Steel perforated back panels to display)

Each chilled shelf features diffused lighting, product stop and 40mm tall ‘point of sale’ display/ticket strip

Gantry is fitted with toughened side glass protection to the customer side of the display

Additional product illumination from diffused lighting within the curved profile gantry

Curved glass profile is designed to complement other units within the Designline range

Features eye level gantry mounted digital temperature display and control panel (to customer side of display)

Complete with locking castors that have a combined adjustable central foot for levelling, foot adjustment spanner, steel kick plinths and a 2m lead and 3 pin UK plug top

Special-to-order. Non-returnable

Drinks display examples: bottled, canned or carton drinks, water, lemonade. Food display examples : Pies, sandwiches, baguettes, rolls, pastries, cakes & fruit
