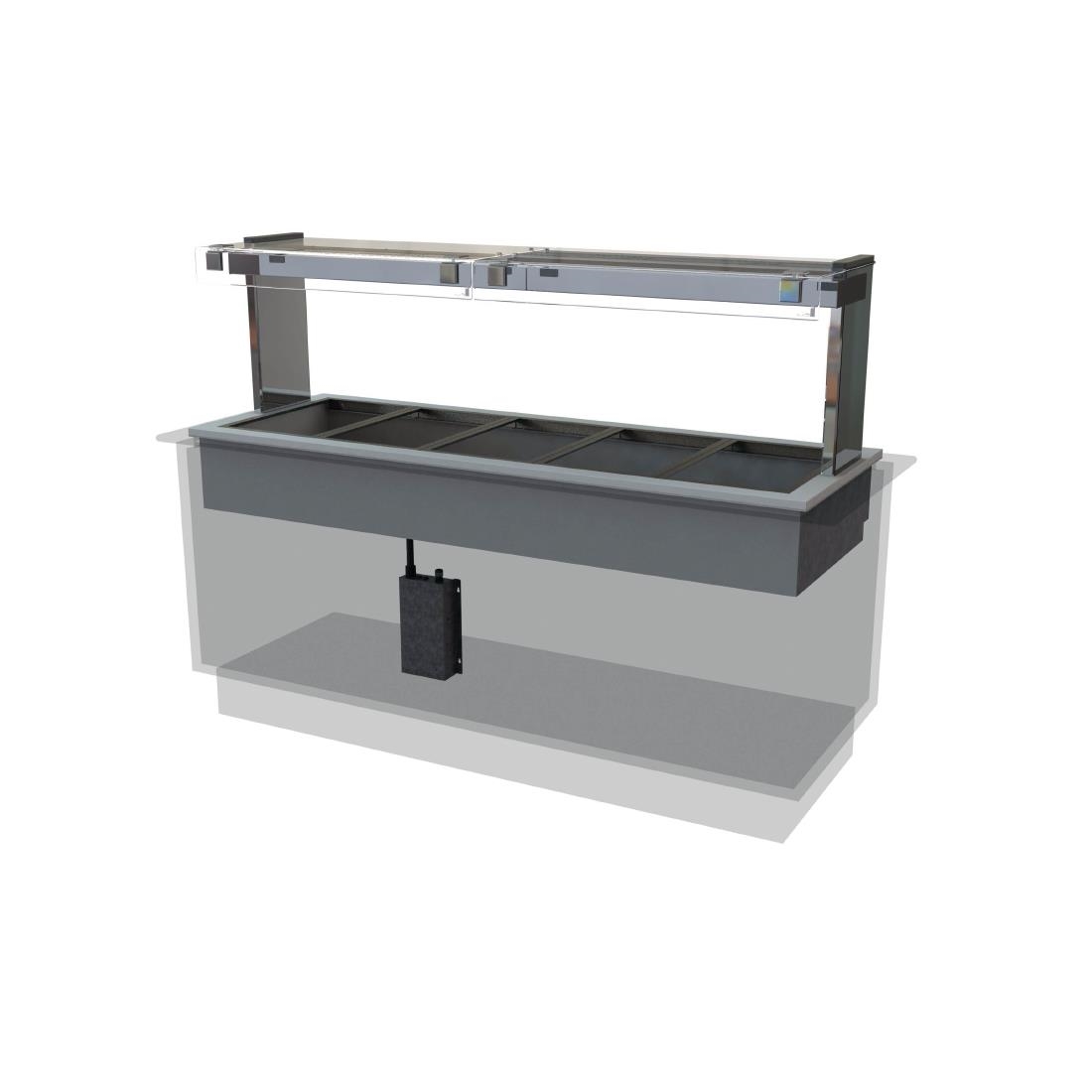

Kubus Drop In Dry Heat Bain Marie KHBM5

Description

Extend the shelf life of your heated food by hours with the Kubus Drop In Dry Heat Bain Marie, a food display model capable of preserving meals 24 hours a day with minimal human maintenance. Generating heat for your meals through bottom-mounted heat elements and overhead heat lamps, your meals will remain evenly heated across both sides of their surface as well as retaining a solid core temperature. The gantry above provides your food protection from contamination with toughened sneeze screens surrounding the gastronorm support frame, as well as containing the integrated temperature control panel which controls both the base and surface heat of the display.Please note: base/counter not included. Special-to-order – this product is non-returnable.

Product features

Capacity 5 x 1/1 GN

Dimensions 540(H) x 1875(W) x 660(D)mm

Material Stainless Steel & Aluminium

Power Type 4kW, 230V, 20A

Supplier Model Number KHBM5

Temperature Range 85°C to 110°C

Voltage 230V

Weight 71kg

Colour Chrome & Black

Warranty RBD 1 Year

Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile

Product illumination/ surface heat provided by infra red quartz heat lamps to each 1/1 GN section, housed within a rectangular profile gantry

Base heat is provided to each 1/1 GN section by individual heater elements

Supplied with individual 1/1 gastronorm container support collars, which accept various sized GN containers up to 150mm deep

Gantry fitted with flat toughened glass sneeze screen to customer side of display, for food protection

24 hour operation as standard

Self help application

Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch (to operator side of display)

Supplied with lifting kit for installation and concealed control box with a 2M flexible electrical conduit for hard wiring to a 20 Amp, 230v 4.0KW supply

Flat glass profile is designed to complement other units within the Kubus range
