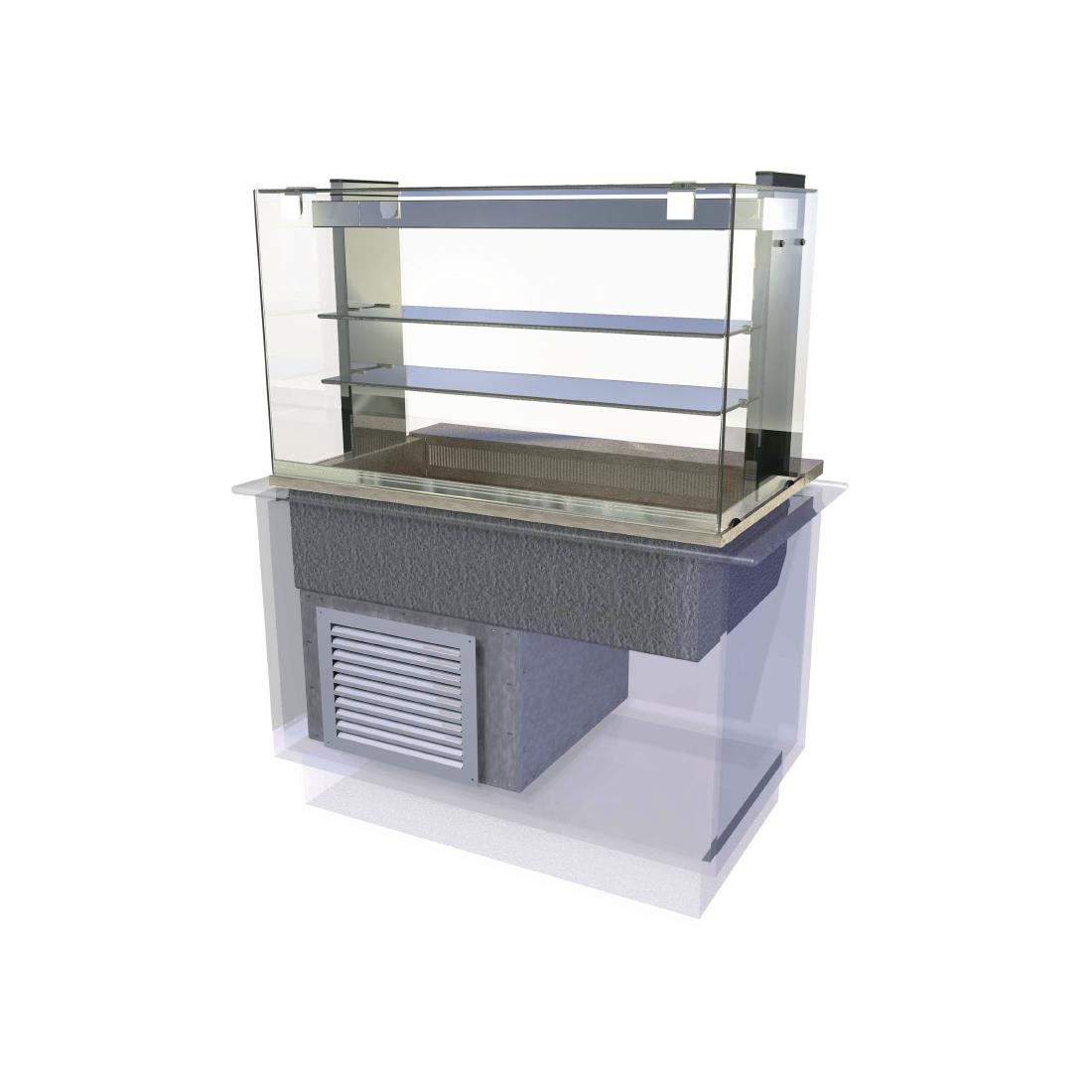

Kubus Drop In Multideck Assisted Service 1175mm KCMDL3HT

Description

Supply customers with round-the-clock chilled produce through this highly proficient Cold Multi Level Deli from Kubus, a resourceful drop in refrigeration model. Two glass shelves centred in the display assist the 3/1 gastronorm basin below, which is all cooled through an eco-friendly hydrocarbon condenser housed underneath the illuminated gantry. An eye-level digital control panel maintains anything from canned drinks to salads and baguettes dependably between 2°C and 5°C, which can then be locked to avoid interference from customers. GN pans sold separately.Please note: base/counter not included. Special-to-order – this product is non-returnable.

Product features

Capacity 3 x 1/1 GN

Dimensions 700(H) x 1175(W) x 784(D)mm

Dimensions – internal 115(H) x 1050(W) x 550(D)mm

Material Stainless Steel & Aluminium

Finish – external Stainless Steel

Power Type 1.22kW, 230V, 13A

Refrigerant R290 / 365g

Supplier Model Number KCMDL3HT

Temperature Range -1°C to 5°C

Voltage 230V

Weight 157kg

Colour Chrome & Black

Noise Level 63.8

Warranty RBD 1 Year

Five Year Electricity Cost £668.20 – based on £0.13 per unit

Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile

The 3/1 GN well display area is chilled by energy efficient hydrocarbon refrigerant (r290)

Gantry fitted with flat full height toughened glass sneeze screen and side glass for food protection. Glass tilts forward in a locking hinge for ease of cleaning

Assisted service application

Features eye level gantry mounted digital temperature display & control panel (to operator side of display)

24 hour operation as standard

Product illumination is provided from diffused lighting within the gantry

Two additional ambient glass mid shelves provide additional merchandising space above the cold display area

Flat glass profile is designed to complement other units within the Kubus range

Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket

(Cold well area) Drinks display examples: Still & carbonated, bottled, canned or carton drinks, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks. (Cold well area) Food display examples: Pies, pasties, sausage rolls & cooked meats, sandwich fillings, baked potato fillings, salad items & cheese, sandwiches, baguettes, rolls, barm cakes, pasta, cream cakes & pastries, cakes, yoghurt, fruit in juice & fruit

(Ambient shelving area) : Food display examples : Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts. Sandwiches, baguettes, rolls, barm cakes & cheese subject to local health regulations
