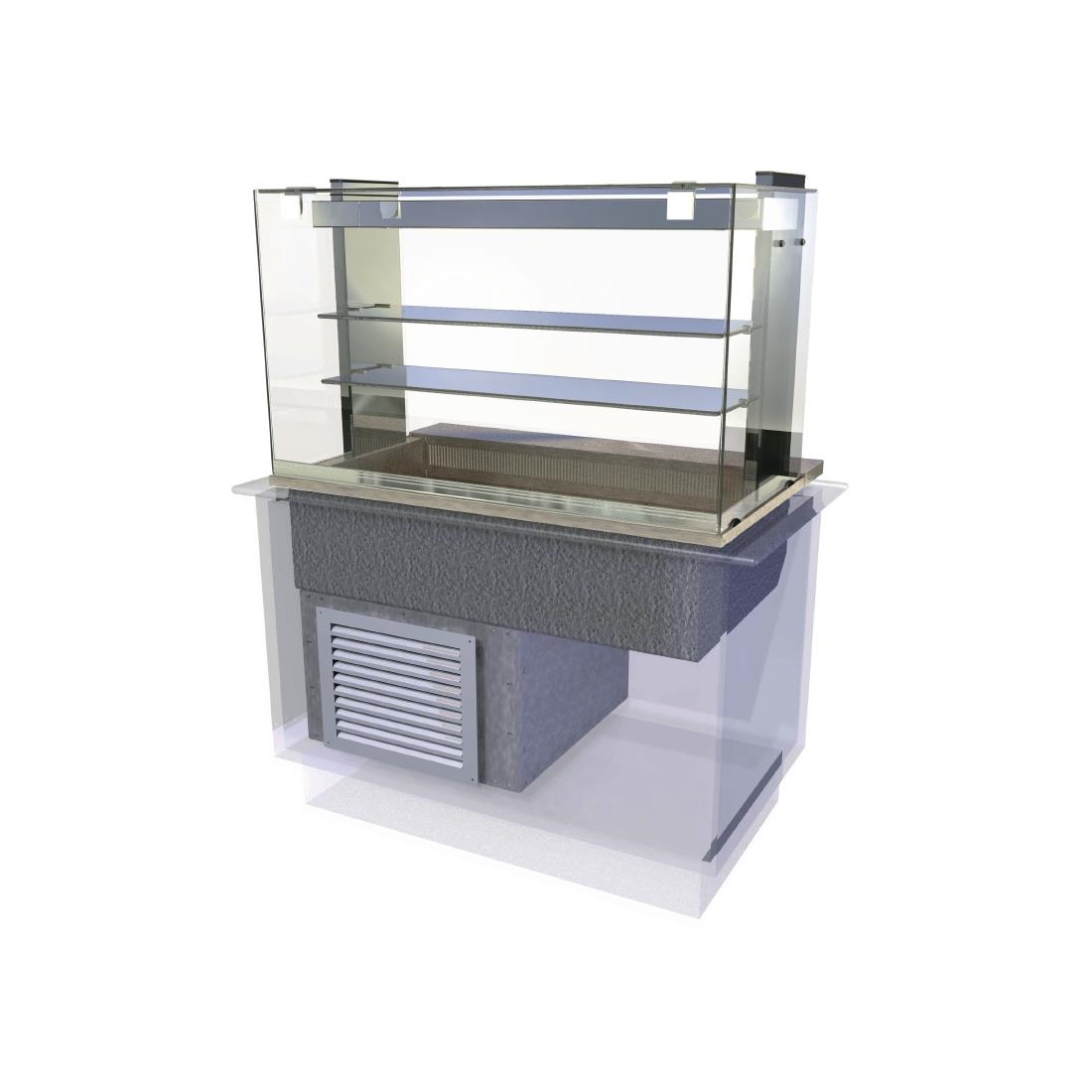

Kubus Drop In Multideck Assisted Service 1525mm KCMDL4HT

Description

This Kubus Multi Level Deli supplies refrigerated products through an 4/1 Gastronorm compatible well and two toughened overhead glass shelves, doubling this cold island refrigeration unit as a self-service merchandiser as well as a reliable source of chilled storage. With a flexible application, this Kubus model is suited to anything from pies and pastries to pasta, cakes and fruits, making it apt for large scale businesses such as hotel dining areas, holiday canteens and other establishments with a regular and constant flow of customers. This unit is powered by R290 hydrocarbon refrigeration meaning it is both kinder on cost and the environment, and is sourced through an underslung condenser unit beneath the lighted gantry. GN pans sold separately.Please note: base/counter not included. Special-to-order – this product is non-returnable.

Product features

Capacity 4 x 1/1 GN

Dimensions 700(H) x 1525(W) x 784(D)mm

Dimensions – internal 115(H) x 1400(W) x 550(D)mm

Material Stainless Steel & Aluminium

Finish – external Stainless Steel

Power Type 1.46kW, 230V, 13A

Refrigerant R290 / 420g

Supplier Model Number KCMDL4HT

Temperature Range -1°C to 5°C

Voltage 230V

Weight 175kg

Colour Chrome & Black

Noise Level 63.8

Warranty RBD 1 Year

Five Year Electricity Cost £880.75 – based on £0.13 per unit

Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile

The 4/1 GN well display area is chilled by energy efficient hydrocarbon refrigerant (r290)

Gantry fitted with flat full height toughened glass sneeze screen and side glass for food protection. Glass tilts forward in a locking hinge for ease of cleaning

Assisted service application

Features eye level gantry mounted digital temperature display & control panel (to operator side of display)

24 hour operation as standard

Product illumination is provided from diffused lighting within the gantry

Two additional ambient glass mid shelves provide additional merchandising space above the cold display area

Flat glass profile is designed to complement other units within the Kubus range

Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket

Supplied with lifting kit for installation and concealed control box & UK 3 pin plug top on a 2M lead

(Cold well area) Drinks display examples: bottled or carton drinks, fruit juice. Food display examples: Pies, pasties, sausage rolls, rolls, pasta & fruit
